Selecting a Tablelist Row, Tree Node or Calendar Date

GRIDPLUS provides the gpselect command to select a Tablelist row, Tree node or Calendar date.

For Tablelist and Tree the selected row/node is highlighted, the value of the "null" array item set and, if "-action single" is specified for the Tablelist/Tree, the action procedure is invoked. For calendar the value of the associated variable is set. The Calendar will also "navigate" to the month/year of the specified date and the day will be highlighted.

Syntax

As from GRIDPLUS release 2.11 a modified (backward compatible) gpselect syntax has been introduced so as to allow a more logical parameter order when selecting a Tablelist row. I have also introduced a -row option which has the same effect as -index as I feel this makes code more readable. I am now recommending use of the new "|" option instead of "--". This has the effect of turning off option processing, reversing the column and match parameters (If a column has been specified) -and- acting as a separator to improve code readability.

The syntax is partially free-form. The following rules apply:-

Note: For the purposes of documentation/examples the following is used:-

gpselect item ?options? ?column? match|row|date

Examples:

To select row "3" of ".mytable" any of the following are valid:-

gpselect .mytable -row 3
gpselect -row .mytable 3
gpselect .mytable 3 -row

Some examples also using the "-focus" option:-

gpselect .mytable -focus -row 3
gpselect -focus -row .mytable 3
gpselect .mytable 3 -row -focus
gpselect .mytable -row 3 -focus
gpselect .mytable -row -focus 3

When using gpselect to match by column content where the content to match begins with "-" the "|" option can be used to turn off option processing.

Examples:

To select the row in ".mytable" where the first column matches "-ABC123" the following are valid:-

gpselect .mytable | "-ABC123"
gpselect .mytable -focus | "-ABC123"
gpselect -focus .mytable | "-ABC123"

Note: For Tablelist selection by match it is recommended that the "|" option always be used.

Selecting a Tablelist Row

A Tablelist row can be selected in the following ways:-

Note: For -max and -min the sort order for the specified column is used define the order.

Syntax:-

gpselect item ?-focus? | ?column? match
gpselect item ?-focus? -row row
gpselect item ?-focus? -max column
gpselect item ?-focus? -min column
gpselect item ?-focus? -first
gpselect item ?-focus? -last
gpselect item -save ?column?
gpselect item ?-focus? -restore

For Example:

gpselect .mytable | "ABC123"

...Will select the row in ".mytable" where the content of the first column is "ABC123".

gpselect .mytable | reference "ABC123"

...Will select the row in ".mytable" where the content of the column with name "reference" is "ABC123".

gpselect .mytable -focus | reference "ABC123"

...Will select the row in ".mytable" where the content of the column with name "reference" is "ABC123" and give focus to the Tablelist.

gpselect .mytable -row 3

...Will select the fourth row in ".mytable".

gpselect .mytable -focus -row 3

...Will select the fourth row in ".mytable" and give focus to the Tablelist.

gpselect .mytable -max id

...Will select the row in ".mytable" which has the highest value for the column with name "id".

gpselect .mytable -last

...Will select the last row in ".mytable".

gpselect .mytable -save

...Will save the index for the currently selected row in ".mytable" - (Restore will select the row which has the "saved" index).

gpselect .mytable -save reference

...Will save the value of the column named "reference" for the currently selected row in ".mytable" - (Restore will select the row where the column named "reference" matches the "saved" value).

gpselect .mytable -restore

...Will select the previously "saved" row in ".mytable".

Selecting a Tree Node

A Tree node is selcted by matching (exactly) the path name of a node.

Syntax:-

gpselect item node

For Example:

gpselect .mytree "/Dir1/Dir2/File1"

...Will select the node in ".mytree" where the node path is "/Dir1/Dir2/File1".

Selecting a Calendar Date

A Calendar date is selected by specifying the required date. The date must be in the format specified by -dateformat.

Syntax:-

gpselect item date
gpselect -selectonly item {}

For Example:

gpselect .mycal 08/25/2009
...Will set/select August 25th 2009.

To clear the selection and the Calendar value specify null as the date...

For Example:

gpselect .mycal {}

Using the -selectonly option it is possible to clear the selection without altering the value (See calendar example).

For Example:

gpselect -selectonly .mycal {}

Example

This example has the following functionality:-

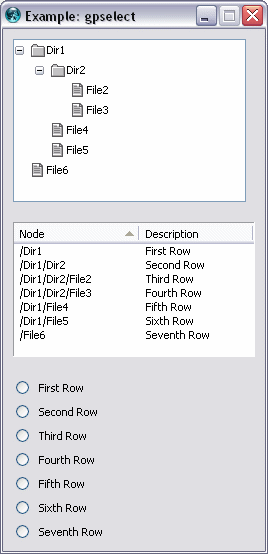

Window:

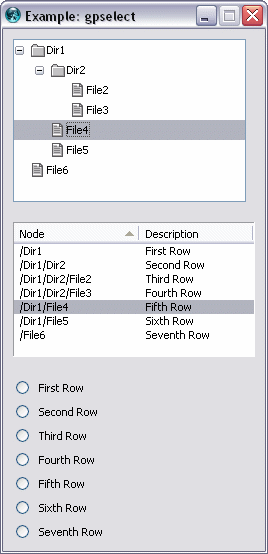

If the "File4" node in the Tree is selected using a single-click the following is displayed:-

...Then selecting the "Second Row" radiobutton...

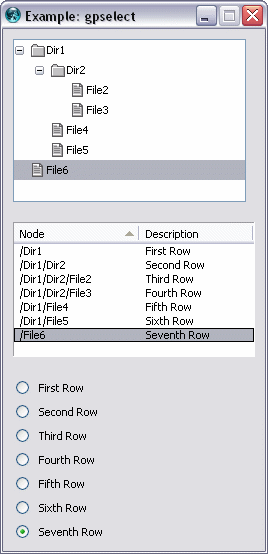

...Then selecting the "File6/Seventh Row" row in the Tablelist using a double-click...

Source Code:

#======================================================#
# Procedure invoked by single-click on ".mytree" node. #
#======================================================#
proc mytree {} {
   global {}

   gpselect .mytable | $(.mytree)
}

#======================================================#
# Procedure invoked by double-click on ".mytable" row. #
#======================================================#
proc mytable {} {
   global {}

   gpselect .mytree  [lindex $(.mytable) 0]
   gpset   .mybutton [lindex $(.mytable) 1]
}

#================================================#
# Procedure invoked when radion button selected. #
#================================================#
proc mybutton {} {
   global {}

   gpselect .mytable | description $(.mybutton)
}

#==========================================================#
# Create tree, tablelist, radiobuttons and display window. #
#==========================================================#

gridplus tree .mytree -action single -height 8 -open 1 -width 230

gridplus tablelist .mytable -action double -height 8 {
   0 "Node"
   0 "Description"
}

gridplus radiobutton .mybutton -rcmd mybutton {
   {.1 "First Row"   "-First Row"}
   {.2 "Second Row"  "-Second Row"}
   {.3 "Third Row"   "-Third Row"}
   {.4 "Fourth Row"  "-Fourth Row"}
   {.5 "Fifth Row"   "-Fifth Row"}
   {.6 "Sixth Row"   "-Sixth Row"}
   {.7 "Seventh Row" "-Seventh Row"}
}

gridplus layout .main -wtitle "Example: gpselect" {
   .mytree
   .mytable
   .mybutton
}

pack .main

gpset .mytree {
   {/Dir1 +}
   {/Dir1/Dir2 +}
   /Dir1/Dir2/File2
   /Dir1/Dir2/File3
   /Dir1/File4
   /Dir1/File5
   /File6
}

gpset .mytable {
   {/Dir1 {First Row}}
   {/Dir1/Dir2 {Second Row}}
   {/Dir1/Dir2/File2 {Third Row}}
   {/Dir1/Dir2/File3 {Fourth Row}}
   {/Dir1/File4 {Fifth Row}}
   {/Dir1/File5 {Sixth Row}}
   {/File6 {Seventh Row}}
}

Comments:

proc mytree {} {
   global {}

   gpselect .mytable | $(.mytree)
}

Creates a procedure called "mytree" which is invoked by a single-click on a node in the ".mytree" Tree.

"gpselect .mytable | $(.mytree)" selects the row in ".mytable" where the first column in the row matches the value of the selected ".mytree" node.

Note: By default the first column is matched.

proc mytable {} {
   global {}

   gpselect .mytree   [lindex $(.mytable) 0]
   gpset    .mybutton [lindex $(.mytable) 1]
}

Creates a procedure called "mytable" which is invoked by a double-click on a row in the ".mytable" Tablelist.

"gpselect .mytree [lindex $(.mytable) 0]" selects the the node in ".mytree" where the path of the node matches the first column of the selected ".mytable" row.

"gpset .mybutton [lindex $(.mytable) 1]" selects the ".mybutton" Radiobutton which has the selection value which matches the second column of the selected ".mytable" row.

proc mybutton {} {
   global {}

   gpselect .mytable | description $(.mybutton)
}

Creates a procedure called "mybutton" which is invoked when a ".mybutton" Radiobutton is selected.

"gpselect .mytable | description $(.mybutton)" selects the row in ".mytable" where the column named "description" in the row matches the value of the selected ".mybutton" Radiobutton.

gridplus tree .mytree -action single -height 8 -open 1 -width 230

Creates a GRIDPLUS Tree called ".mytree". The "-action single" option causes a procedure called "mytree" to be invoked when a node is selected using a single-click.
gridplus tablelist .mytable -action double -height 8 {
   0 "Node"
   0 "Description"
}

Creates a GRIDPLUS Tablelist called ".mytable". The "-action double" option causes a procedure called "mytable" to be invoked when a row is selected using a double-click.
gridplus radiobutton .mybutton -rcmd mybutton {
   {.1 "First Row"   "-First Row"}
   {.2 "Second Row"  "-Second Row"}
   {.3 "Third Row"   "-Third Row"}
   {.4 "Fourth Row"  "-Fourth Row"}
   {.5 "Fifth Row"   "-Fifth Row"}
   {.6 "Sixth Row"   "-Sixth Row"}
   {.7 "Seventh Row" "-Seventh Row"}
}

Creates a GRIDPLUS radiobutton grid called ".mybutton". The "-rcmd mybutton" option causes a procedure called "mybutton" to be invoked when a Radiobutton is selected.
gridplus layout .main -wtitle "Example: gpselect" {
   .mytree
   .mytable
   .mybutton
}

pack .main

Creates and displayes a GRIDPLUS layout called ".main" to arrange the Tree, Tablelist and Radiobuttons one above the other.
gpset .mytree {
   {/Dir1 +}
   {/Dir1/Dir2 +}
   /Dir1/Dir2/File2
   /Dir1/Dir2/File3
   /Dir1/File4
   /Dir1/File5
   /File6
}

gpset .mytable {
   {/Dir1 {First Row}}
   {/Dir1/Dir2 {Second Row}}
   {/Dir1/Dir2/File2 {Third Row}}
   {/Dir1/Dir2/File3 {Fourth Row}}
   {/Dir1/File4 {Fifth Row}}
   {/Dir1/File5 {Sixth Row}}
   {/File6 {Seventh Row}}
}

Populates ".mytree" and ".mytable" with suitable example data.
